Performance Material · Special & Standard Brasses
EnviB 158
CuZn42
EnviB 158: Special & Standard Brasses from the Lebronze Alloys North American range.
CW510L
✓ Lead-free · REACH / RoHSOverview
Special & Standard Brasses.
EnviB 158: Special & Standard Brasses from the Lebronze Alloys North American range.
Sectors served
FamilySpecial & Standard Brasses
CompositionCuZn42
Density8.36 g/cm³
Conductivity26 %IACS

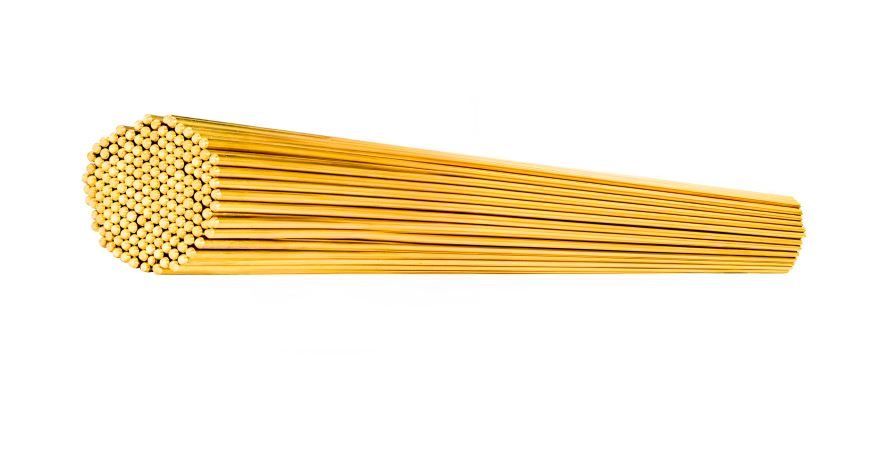

FormsWires, Rods
Mechanical properties
Minimum guaranteed properties.
Minimum guaranteed values by grade and product form.
| Grade / spec | Form | Tensile (ksi) | Yield 0.2% (ksi) | Elong. (%) | Hardness (HB) | Hardness (HRC) | Compliant with |
|---|---|---|---|---|---|---|---|
| EnviB 158 | Rods | 59 ksi | 32 ksi | 8 | 103 | n/a | CW510L |
| EnviB 158 | Wires | 59 ksi | 32 ksi | 8 | 103 | n/a | CW510L |
Data for information only, non-contractual. Request a certified datasheet for design allowables.
Physical properties
| Density | 8.36 g/cm³ |
| Electrical conductivity | 26 %IACS |
| Thermal conductivity | 96 W/m·K |
| Young's modulus | 107 GPa |
| Thermal expansion | 21.7 ×10⁻⁶/K |
| Magnetic permeability | n/a |
| Machinability index | n/a |
| NACE corrosion rating | n/a |
Standards & specifications
Norms & designations.
Norms & designations
- CW510L
Available forms
Forms & applications.
Available form
Wires
Available form
Rods
Industries using EnviB 158
