Performance Material · Copper-Nickel Alloys
C98
CuNiPb0.5P · UNS C19140
C98: Copper-Nickel Alloys from the Lebronze Alloys North American range.
Overview
Copper-Nickel Alloys.
C98: Copper-Nickel Alloys from the Lebronze Alloys North American range.
Sectors served
FamilyCopper-Nickel Alloys
CompositionCuNiPb0.5P
UNSC19140
Density8.9 g/cm³
Conductivity50 %IACS
FormsWires, Rods
Mechanical properties
Minimum guaranteed properties.
Minimum guaranteed values by grade and product form.
| Grade / spec | Form | Tensile (ksi) | Yield 0.2% (ksi) | Elong. (%) | Hardness (HB) | Hardness (HRC) | Compliant with |
|---|---|---|---|---|---|---|---|
| C98 | Rods | 80 ksi | 71 ksi | 2 | 149 | n/a | — |
| C98 | Wires | 80 ksi | 71 ksi | 2 | 149 | n/a | — |
Data for information only, non-contractual. Request a certified datasheet for design allowables.
Physical properties
| Density | 8.9 g/cm³ |
| Electrical conductivity | 50 %IACS |
| Thermal conductivity | 245 W/m·K |
| Young's modulus | n/a |
| Thermal expansion | 18 ×10⁻⁶/K |
| Magnetic permeability | n/a |
| Machinability index | 60 |
| NACE corrosion rating | n/a |
Available forms
Forms & applications.
Available form

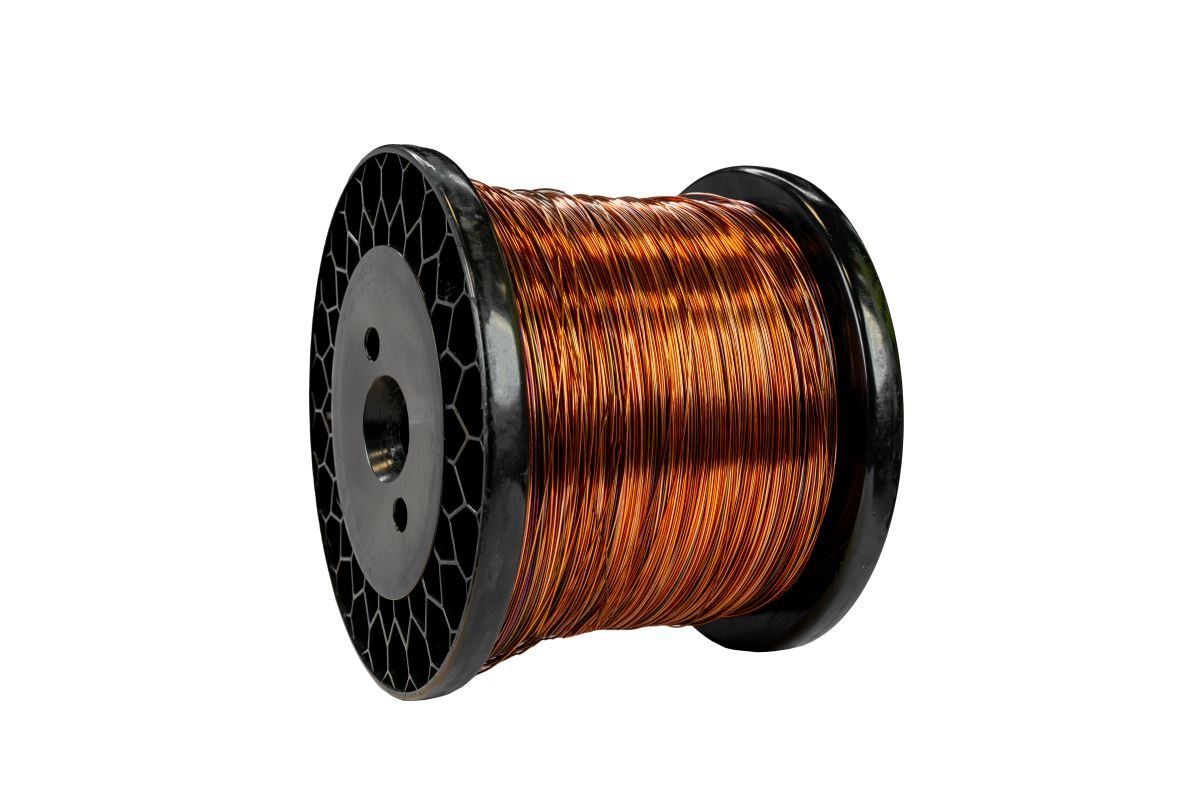

Wires
Available form
Rods
Industries using C98
