Performance Material · Pure & Low-Alloyed Copper

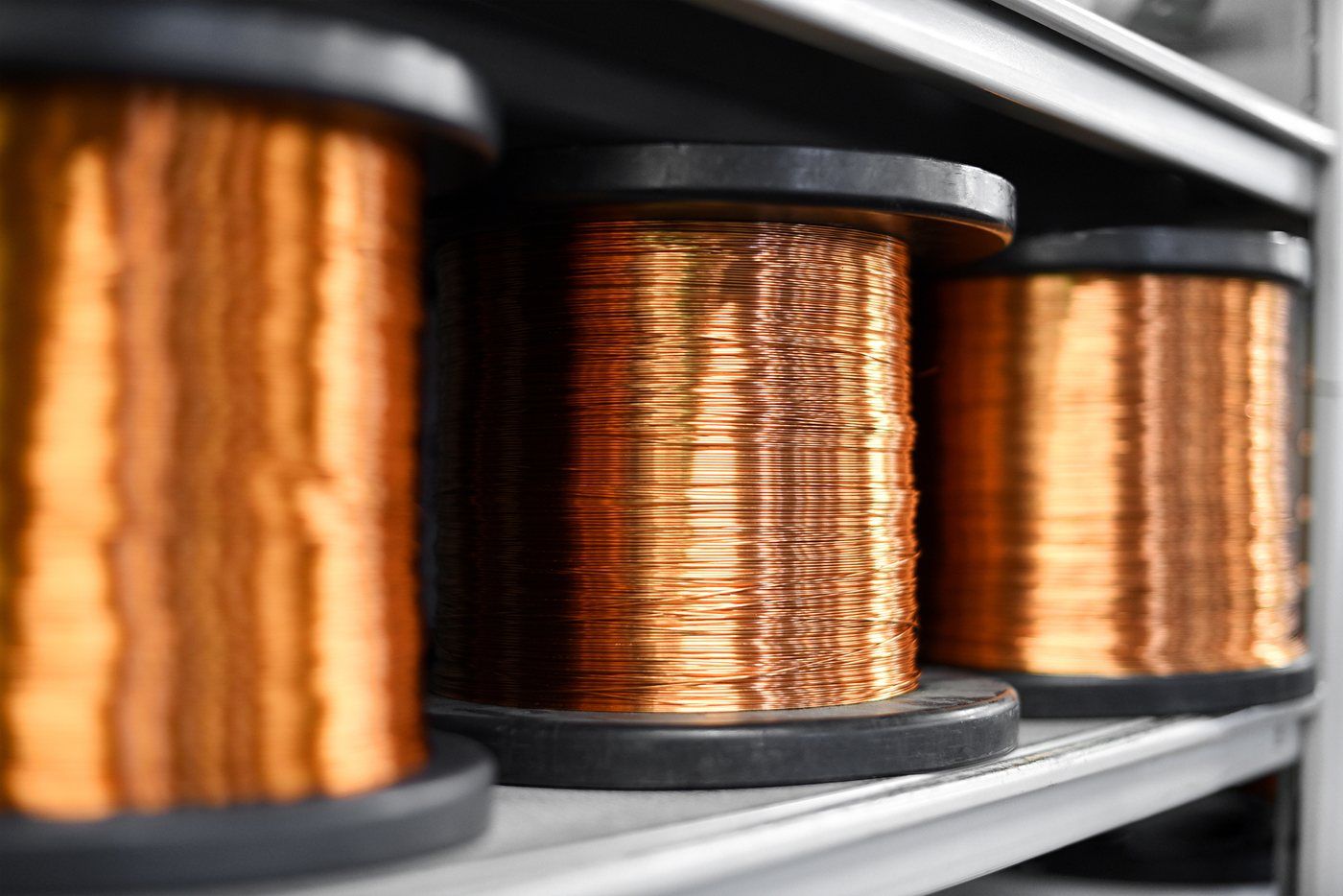

UC500
CuCrZr
UC500: Pure & Low-Alloyed Copper from the Lebronze Alloys North American range.
ASTM B624
✓ Lead-free · REACH / RoHSOverview
Pure & Low-Alloyed Copper.
UC500: Pure & Low-Alloyed Copper from the Lebronze Alloys North American range.
Sectors served
FamilyPure & Low-Alloyed Copper
CompositionCuCrZr
Density8.9 g/cm³
Conductivity92 %IACS
MagneticNo
FormsWires, Rods
Mechanical properties
Minimum guaranteed properties.
Minimum guaranteed values by grade and product form.
| Grade / spec | Form | Tensile (ksi) | Yield 0.2% (ksi) | Elong. (%) | Hardness (HB) | Hardness (HRC) | Compliant with |
|---|---|---|---|---|---|---|---|
| UC500 | Rods | 65 ksi | n/a | 16 | n/a | n/a | ASTM B624 |
| UC500 | Wires | 65 ksi | n/a | 16 | n/a | n/a | ASTM B624 |
Data for information only, non-contractual. Request a certified datasheet for design allowables.
Physical properties
| Density | 8.9 g/cm³ |
| Electrical conductivity | 92 %IACS |
| Thermal conductivity | 330 W/m·K |
| Young's modulus | 120 GPa |
| Thermal expansion | 17.1 ×10⁻⁶/K |
| Magnetic permeability | 1.01 |
| Machinability index | n/a |
| NACE corrosion rating | n/a |
Standards & specifications
Norms & designations.
Norms & designations
- ASTM B624
Available forms
Forms & applications.
Available form
Wires
Available form
Rods
