Performance Material · Copper-Nickel Alloys
Hardibron
CuNi14Al3Fe1
Hardibron: Copper-Nickel Alloys from the Lebronze Alloys North American range.
2.1504DTD 900/4805
✓ Lead-free · REACH / RoHSOverview
Copper-Nickel Alloys.
Hardibron: Copper-Nickel Alloys from the Lebronze Alloys North American range.
Sectors served
FamilyCopper-Nickel Alloys
CompositionCuNi14Al3Fe1
Density8.5 g/cm³
Conductivity10 %IACS
MagneticNo

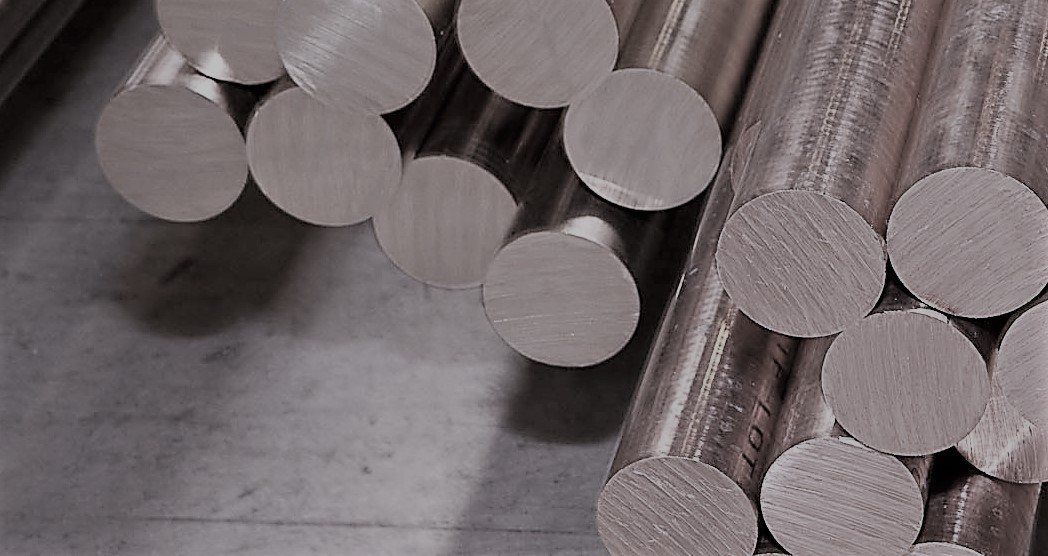

FormsBars
Mechanical properties
Minimum guaranteed properties.
Minimum guaranteed values by grade and product form.
| Grade / spec | Form | Tensile (ksi) | Yield 0.2% (ksi) | Elong. (%) | Hardness (HB) | Hardness (HRC) | Compliant with |
|---|---|---|---|---|---|---|---|
| As supplied | Bars | 113 ksi | 86 ksi | 12 | 240 | 23 | 2.1504, DTD 900/4805 |
Data for information only, non-contractual. Request a certified datasheet for design allowables.
Physical properties
| Density | 8.5 g/cm³ |
| Electrical conductivity | 10 %IACS |
| Thermal conductivity | 71 W/m·K |
| Young's modulus | 145 GPa |
| Thermal expansion | 16 ×10⁻⁶/K |
| Magnetic permeability | 1.01 |
| Machinability index | 10 |
| NACE corrosion rating | 5 |
Standards & specifications
Norms & designations.
Norms & designations
- 2.1504
- DTD 900/4805
Available forms
Forms & applications.
Available form
Bars
Industries using Hardibron
